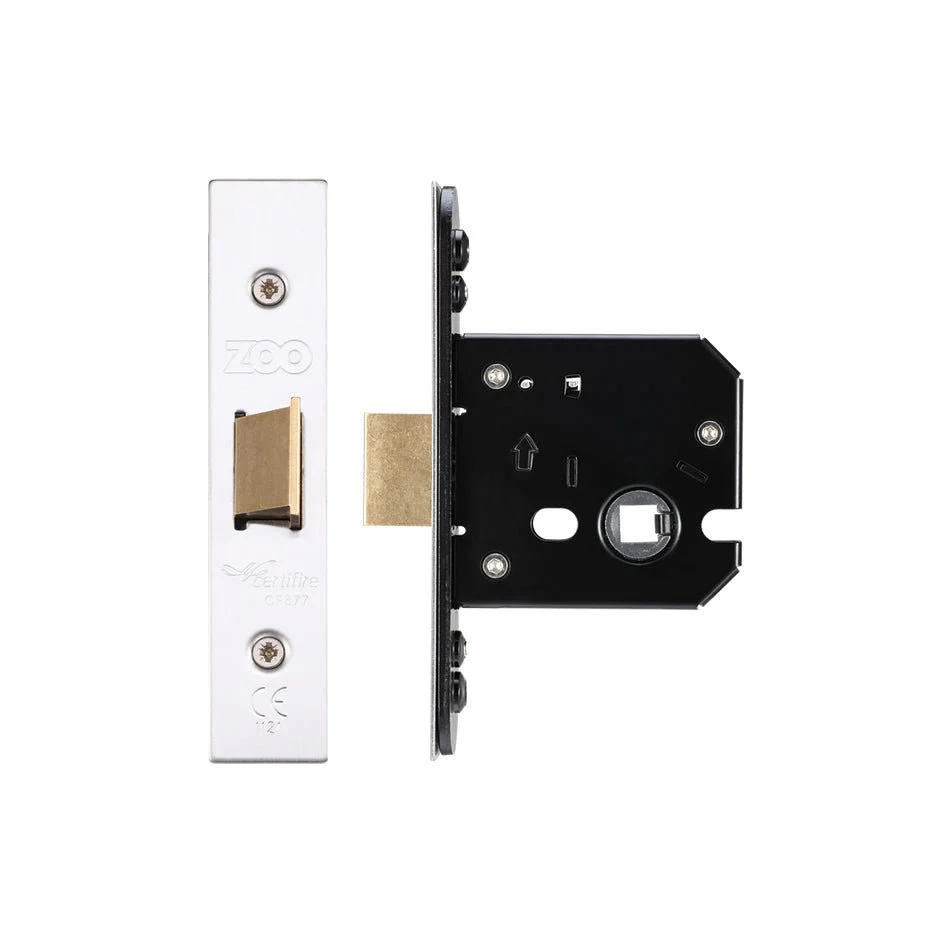

Flat Latch

The Flat Latch is a premium latching solution designed to provide smooth, reliable operation for residential and commercial doors. Manufactured to meet BS EN 12209:2003 Grade 2 standards, this latch delivers dependable performance, long-lasting durability, and compliance with recognised industry requirements.

Featuring a solid brass latch, sintered steel follower, and short travel latch function, the Flat Latch is engineered for smooth and consistent operation. Complete with a grip-tight spring follower, plastic back box, and PVD forend and strike, it is suitable for FD30-60 fire door applications.

Key Features

• BS EN 12209:2003 Grade 2 certified
• Solid brass latch
• Sintered steel follower
• Short travel latch function
• Grip-tight spring follower
• Includes plastic back box
• PVD forend and strike included
• Suitable for FD30-60 fire doors
• CE2812, CF877 and UKCA 1121 certified

Available Sizes

• 64mm
• 76mm
• 102mm

Available Forend & Strike

• PVD

Available Finishes

• Brass Finish / Anti Tarnish
• Satin Stainless

Available Types

• Standard

Specifications

• Product Type: Flat Latch
• Available Sizes: 64mm, 76mm, 102mm
• Latch: Solid Brass
• Follower: Sintered Steel
• Function: Short Travel Latch
• Spring Follower: Grip Tight
• Forend & Strike: PVD
• Back Box: Plastic (Included)
• Certification: BS EN 12209:2003 Grade 2, CE2812, CF877, UKCA 1121
• Fire Rating: FD30-60
